Hercuvan TT-DMS-16/ TT-DMSH-350S CycloneSpin Digital Magnetic Stirrer

Nemo enim ipsam voluptatem quia voluptas sit aspernatur netsum loris fugit, sed quia magni dolores eos qui ratione sequi nesciunt. Neque ets poris ratione fugit, sed quia magni dolores eos qui ratione sequi nesciunt. Neque etus quis sequi enim ipsam voluptatem quias net volupti etsim et netus tempor.

CycloneSpin Digital Magnetic Stirrer Series are compact benchtop magnetic stirrers ergonomically designed for routine stirring applications of solution, media or buffer preparation in various types of laboratories. These affordable digital magnetic stirrers are robust and reliable, designed based on precision, control and operational simplicity to ensure success of your work.

TT-DMSH-350S is a digital magnetic stirrer with hotplate function. It is equipped with PID for precise temperature control and chemical resistant ceramic working surface for rapid heating. Optional external temperature sensor is available for temperature monitoring and detachable stand for various sensor probes (temperature, pH and others).

TT-DMS-16 is equipped with 30° slope, easy-to-read LED display while the TT-DMSH-350S comes with intuitive holographic display with convenient control knob for quick and precise time and speed setting. Variable speed is available for different models which renders low speed to powerful mixing capability. The stirring begins slow to avoid splashing followed by a smooth and steady speed increase.

  Download Manual

Models TT-DMS-16/ TT-DMSH-350S
Speed control range 200 - 1600 rpm/80 - 1800 rpm
Temp. control range (surface) -/ R.T. +5°C - 340°C
Temp. setting range (surface) -/ 30 - 340°C
Temperature stability -/±3°C
Safety light indicator (temp. range) -/50 - 340°C
Digital time setting 1 min - 99h 59min/ Continous
Display LED/ Holographic Display
Working surface diameter 137 mm
Working surface material Stainless Steel with Silicon pad/ Ceramic
Stirring point quantity 1 point
Stirring capacity range (H2O) 50 ml - 20L
Max. stirring capacity (H2O) 20 L
Max. length of stir bar 80 mm
Magnetic stir bar is supplied as standard Ø8 x 46 mm, 1ea
External temp. sensor - / Yes (PT1000)
Motor type Brushless DC motor
Voltage AC100V-240V, 50/ 60Hz // AC110V/ AC 220V, 50/ 60 Hz
Power 20 W/ 60 W
Fuse 250V, 1A, Ø5x20 / 250V, 4A/8A, Ø5x20
Dimension (WxDxH) 160 x 270 x 70 mm / 156 x 270 x 70 mm
Net weight 1.88 kg/ 2.6 kg
Permissible ambient temp. 5°C - 40°C
Permissible relative humidity ≤70%


Hercuvan TT-DOS-40 Twister Digital Overhead Stirrer

Nemo enim ipsam voluptatem quia voluptas sit aspernatur netsum loris fugit, sed quia magni dolores eos qui ratione sequi nesciunt. Neque ets poris ratione fugit, sed quia magni dolores eos qui ratione sequi nesciunt. Neque etus quis sequi enim ipsam voluptatem quias net volupti etsim et netus tempor.

TT-DOS-40 Twister Digital Overhead Stirrer is a robust, general purpose stirrer for medium to high viscosity liquid or solid-liquid mixture, up to 40L. It offers flexible speed range from 50 – 2200 rpm. The controls are easy to operate and enable user to set required speed and torque, with real-time LED display. The anti-spill feature prevents sample spill by implementing a smooth and steady start up. Speed precision is guaranteed by the microprocessor to ensure reliable and reproducible performance. The unit comes with a standard stainless steel stirrer rod of choice.

  Download Manual

Model TT-DOS-40
Max. stir capacity 40L
Speed range 50 - 2200 rpm
Speed control accuracy ±3 rpm
Speed display accuracy ±1 rpm
Time range 30s - 999 min or continuous
Max. torque 60 N.cm
Max. viscosity 50,000 mPas
Drill chuck clamping diameter range 0.5-10 mm
Stirrer rod material Stainless steel (304)
Microprocessor control Yes
Display alarm Yes
Audible alarm No
Voltage DC 24V, 50/60Hz
Power 130W
Dimension (W x D x H) 83 x 186 x 220 mm
Net weight 2.8 kg
Permissible ambient temperature 4°C - 45°C
Permissible relative humidity ≤70%

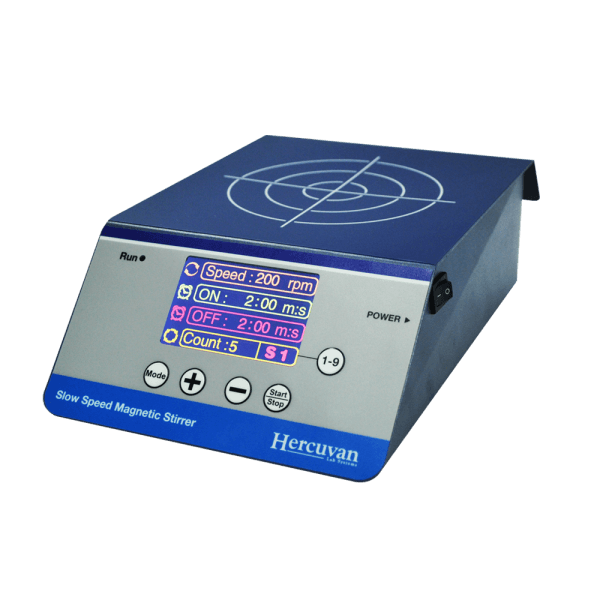

Hercuvan TT-SSMS-200 CellaSpin Slow Speed Magnetic Stirrer

Nemo enim ipsam voluptatem quia voluptas sit aspernatur netsum loris fugit, sed quia magni dolores eos qui ratione sequi nesciunt. Neque ets poris ratione fugit, sed quia magni dolores eos qui ratione sequi nesciunt. Neque etus quis sequi enim ipsam voluptatem quias net volupti etsim et netus tempor.

TT-SSMS-200 CellaSpin Slow Speed Magnetic Stirrer is ideally designed for optimal stirring of sensitive cell suspension and microcarrier cell culture and culture broths. The gentle and smooth stirring capability from as low as 5 rpm up to 200 rpm promotes high cell viability and good mixing of media and cultures for up to 3 litres.

The intuitive digital LCD control panel is easy to use with setting for cycle number and up to 9 programs for convenient daily operation. The built-in digital timer displays elapsed time and stops automatically after it reaches zero. Audible alarm sounds when time reaches zero. The metal shell housing provides durability and resists corrosive agents.

  Download Manual

Model TT-SSMS-200
Speed control range 5 - 200 rpm (1 rpm step)
Digital time setting 0s - 99min 59s
Display Digital TFT LCD
Stirring point 1 position
Maximum stirring capacity 3L
Working surface material Stainless steel
Motor type Stepper motor
Maximum number of programs 9 programs
Voltage AC 100-240V, 50/60Hz
Dimension (W x D x H) 180 x 283 x 88 mm
Net weight 1.8 kg
Permissible ambient temperature 5 - 40°C
Permissible relative humidity ≤70%
